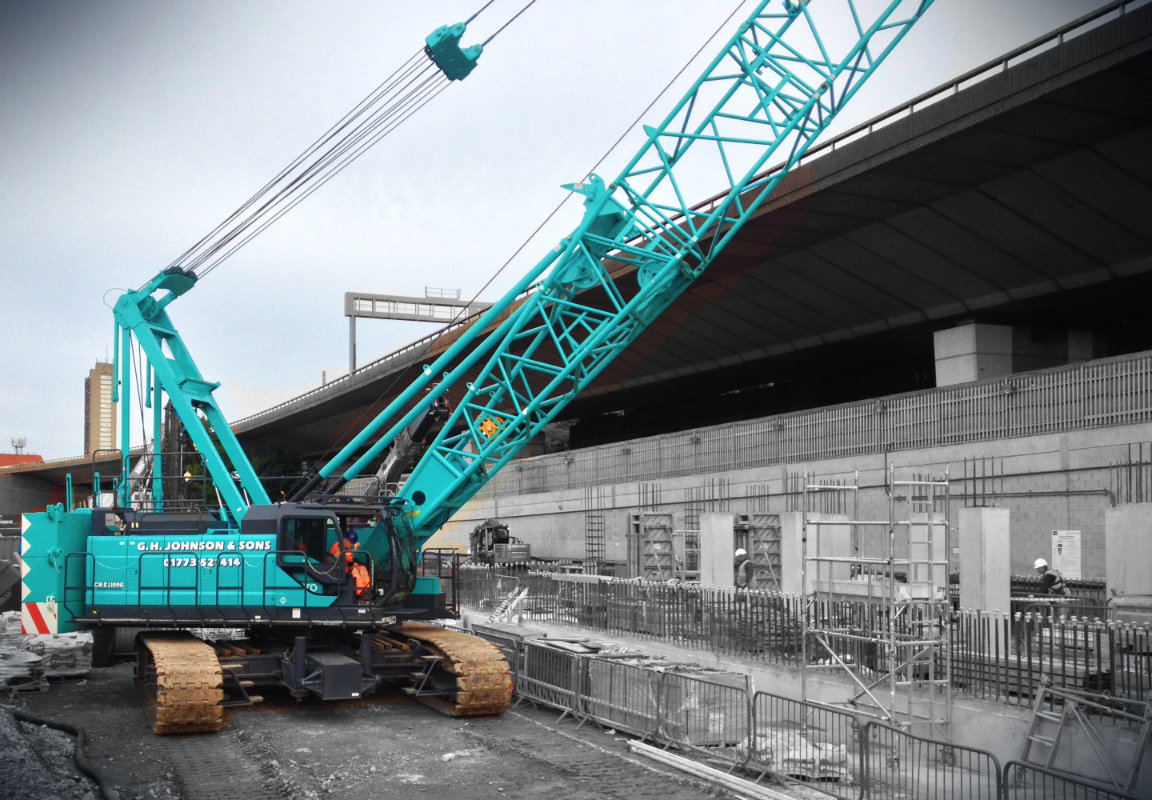

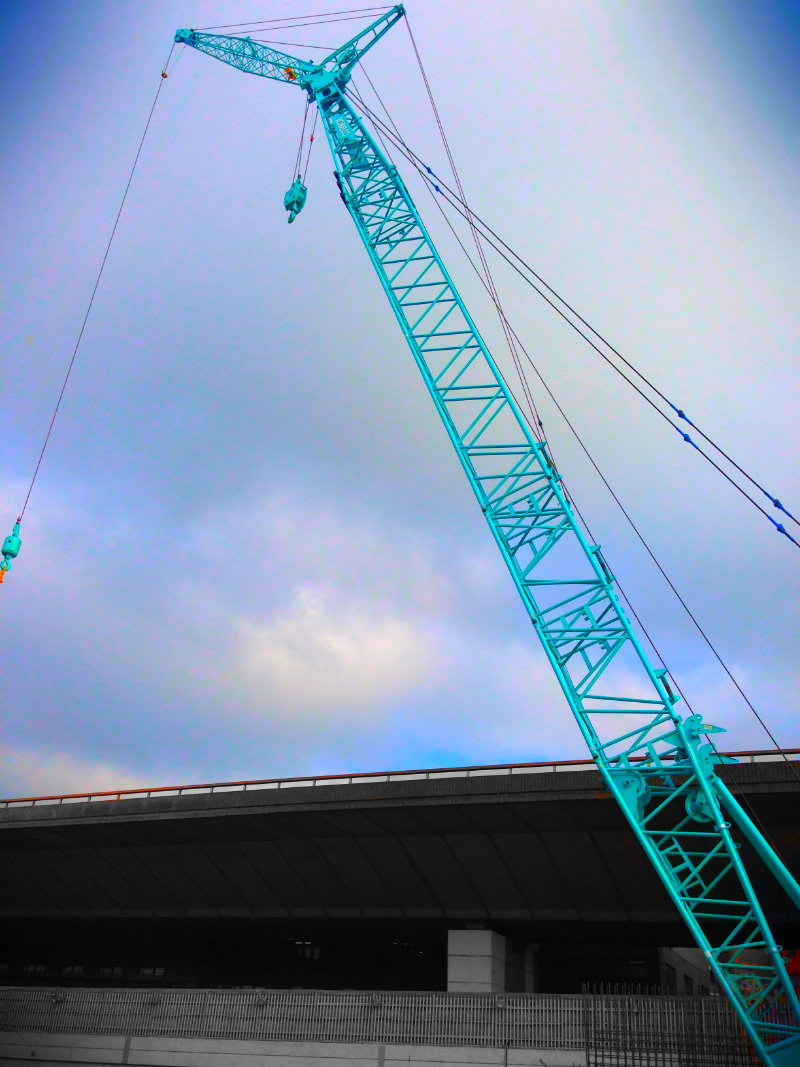

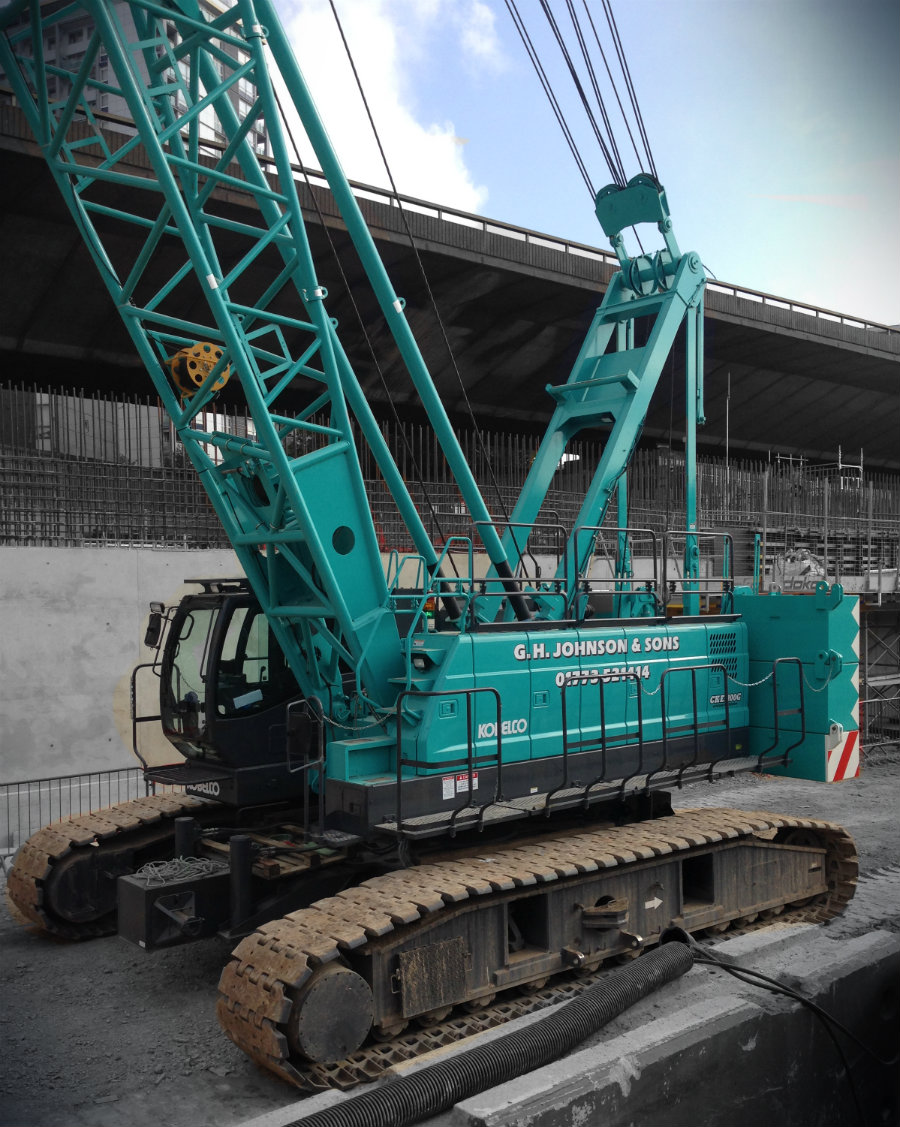

Kobelco CKE1100G
With demand for cleaner, greener machines steadily increasing in 2014, G.H. Johnson Crane Hire Ltd. announced the purchase of an additional KOBELCO G-Series crawler crane. The 110 tonne capacity, CKE1100G, is fitted with a new, low-emission, Euro Stage IIIB compliant engine from HINO producing an impressive 213kW (286HP).
With the introduction of the G-Series range of crawler cranes, Kobelco are the first manufacturer to combine Exhaust Gas Recirculation (EGR) for reduced NOx emissions with an active Diesel Particualte Filter (DPF) to virtually eliminate the Particulate Matter (PMx) commonly associated with diesel engines. The Kobelco CKE1100G is the first construction machine of its kind to meet, and even surpass, the world's most stringent emissions regulations — perfect for inner-city projects like CrossRail and construction sites in sensitive areas.
Kobelco's ground-breaking G-Mode energy-saving system combines three operator-selectable assist modes to reduce fuel consumption & corresponding CO2 emissions by as much as 25%.
- G-Engine keeps the engine running within the most fuel-efficient parameters by limiting engine speed;
- G-Winch allows the operator to raise or lower small loads at high line-speed without increasing engine speed;
- Auto-Idle Stop (AIS) conserves fuel by automatically stopping the engine (with an operator prompt) after 10 seconds of idling. Similar to the fuel-saving systems fitted some of the latest, most economical, cars the AIS system restarts the engine on demand once the operator is ready.
Other re-designed features of the new G-Series machines include a compact super-structure allowing for more efficient transportion; larger cab design with improved visibility; touchscreen LMI & Controller and improved counterweight self-installation mechanism. Kobelco Cranes is renowned for smart engineering and an unwavering focus on creating the best value package for lifting solutions — all designed to give users a competitive edge and provide top performance.
View the full CKE1100G Specification Sheet or contact us for a no-obligation chat about your requirements.

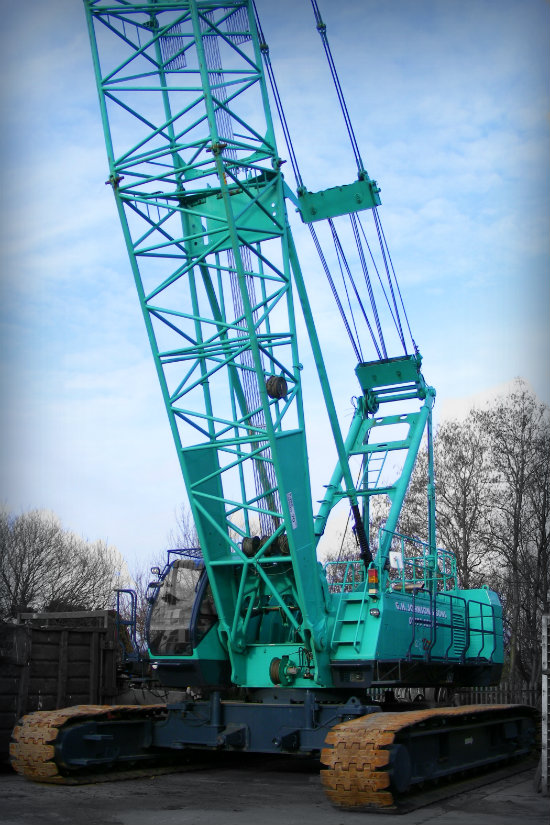

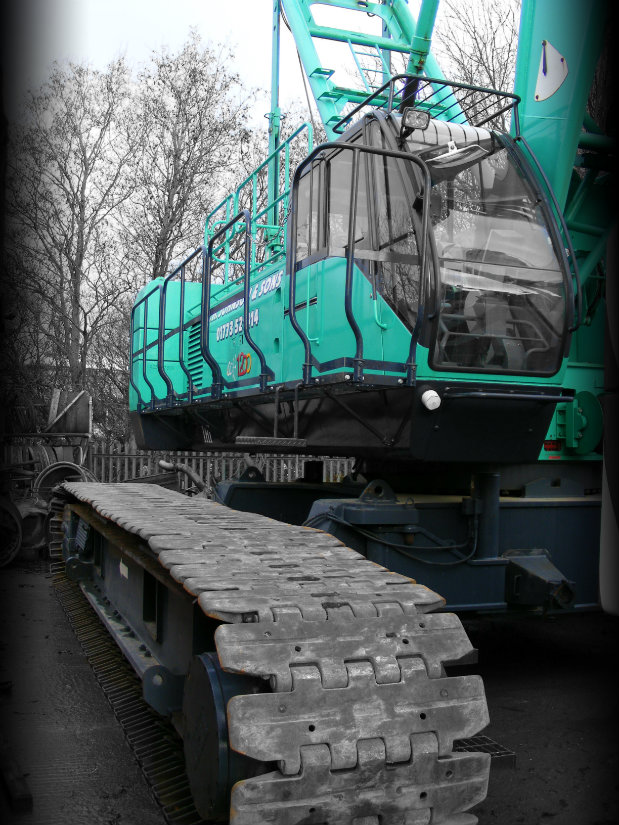

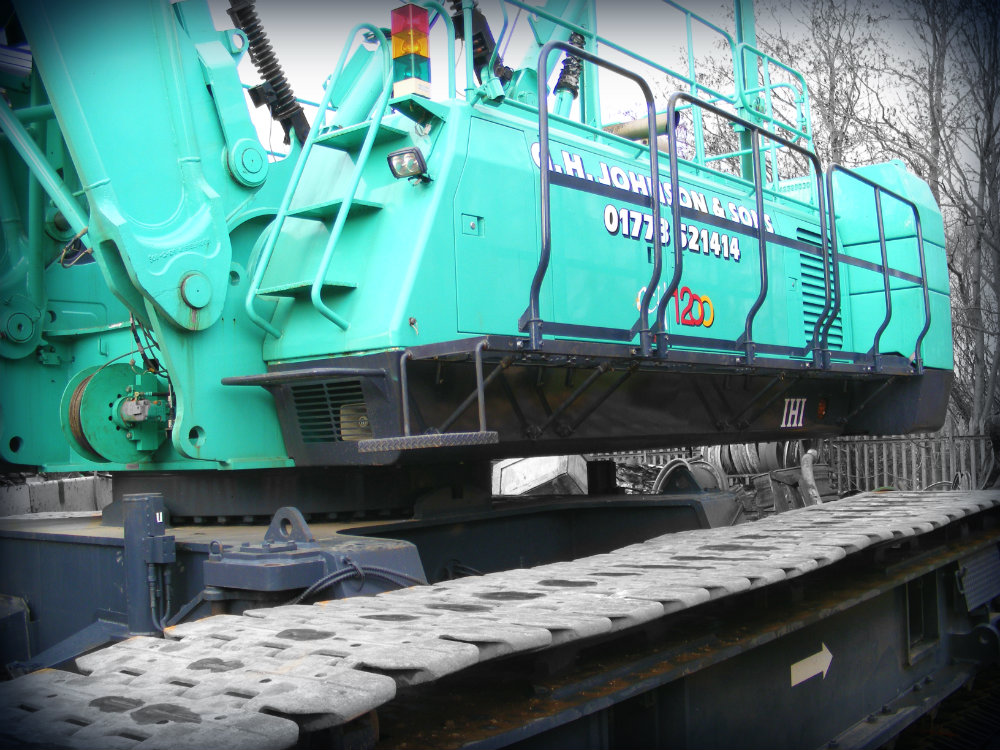

IHI CCH1200-5
120 Tonne Capacity Crawler Crane available for hire — with 18m to 75m Main Boom, Auxiliary Sheave (for 11t capacity whipline) or 13m to 25m Fly Jib. Also available configured as a Luffing Tower Crane with up to 51.25m Tower & 44m Luffing Jib
The operator oriented design of the IHI CCH1200-5 ensures safe and effective operation of this great 120 Tonne capacity Crawler Crane. With independent control of the hydraulic motors driving the Main, Auxiliary & Boom Hoist Drums the operator is able to tailor the operating speed with the load for accurate, precise, inching work while also being able to call upon the highest rope speeds in this class — 100m/min for Hoisting and Lowering. A powerful double slew-motor system, hydraulically independent of all other operations, ensures that swing motion is smooth & completely controlled.
The CCH1200-5 is fitted with two variable & one fixed displacement hydraulic pumps transfering the efficient engine's ample 235kW (320HP) for smooth, high speed and reliable operation. Hydraulic flow and pressures are automatically regulated to deliver high flow and low pressure for lighter loads & low flow and high pressure under heavy loading.
View the full CCH1200-5 Specification Sheet or contact us for a no-obligation chat about your requirements.
