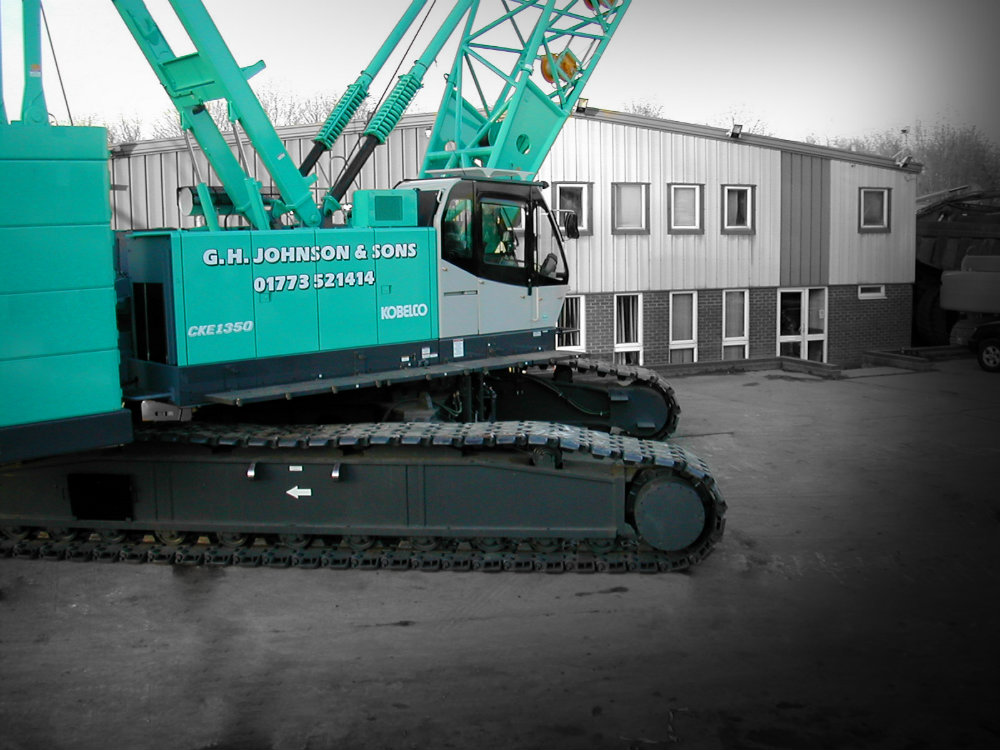

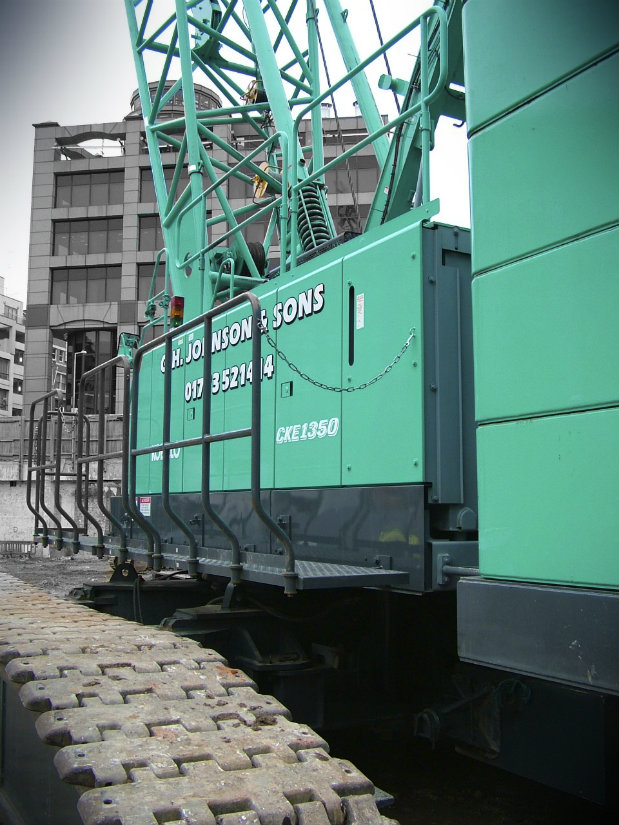

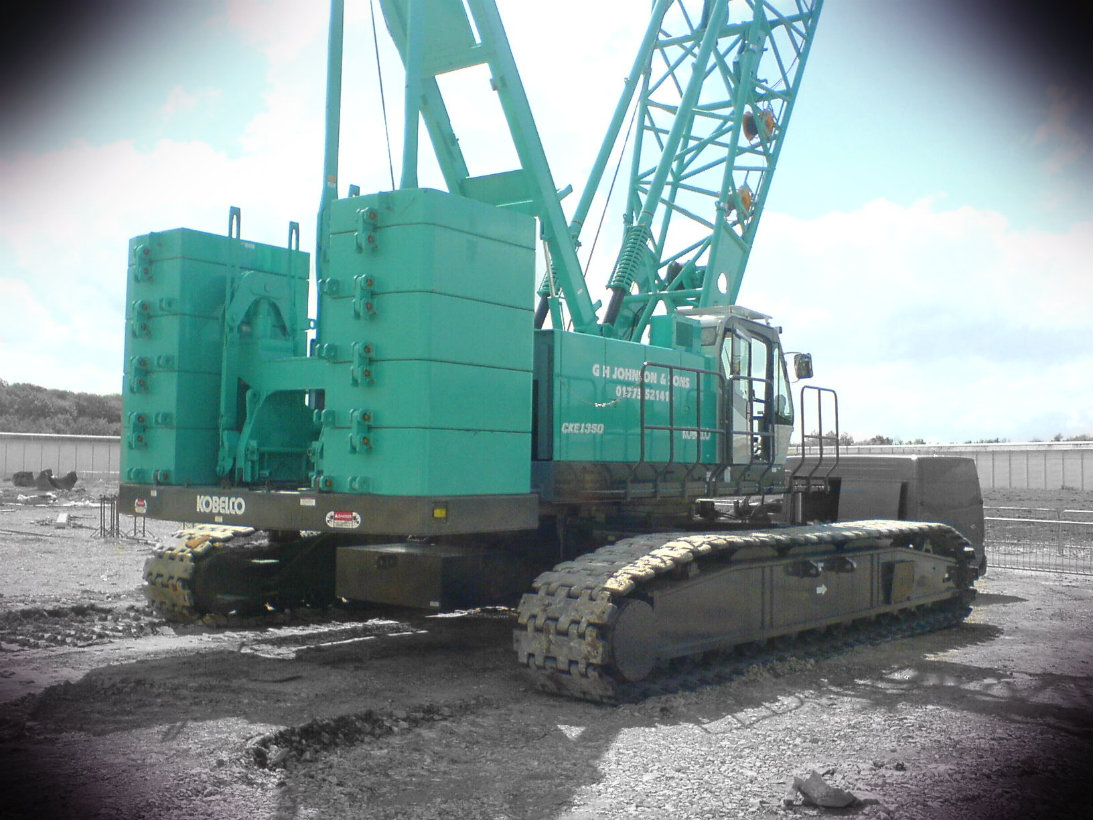

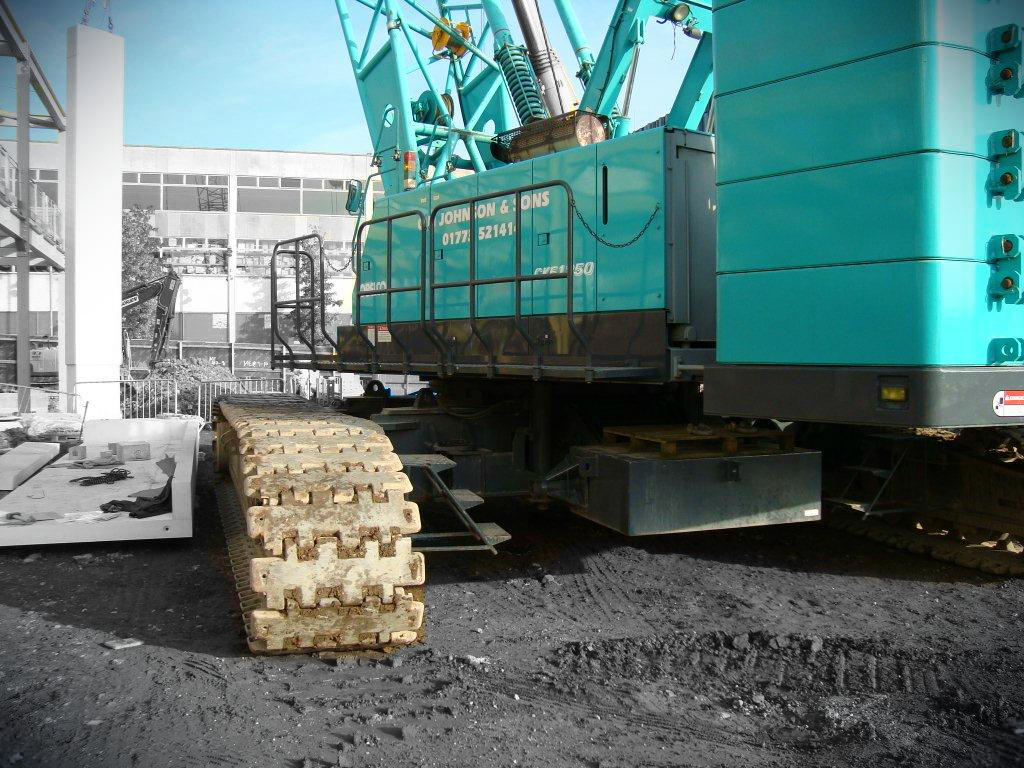

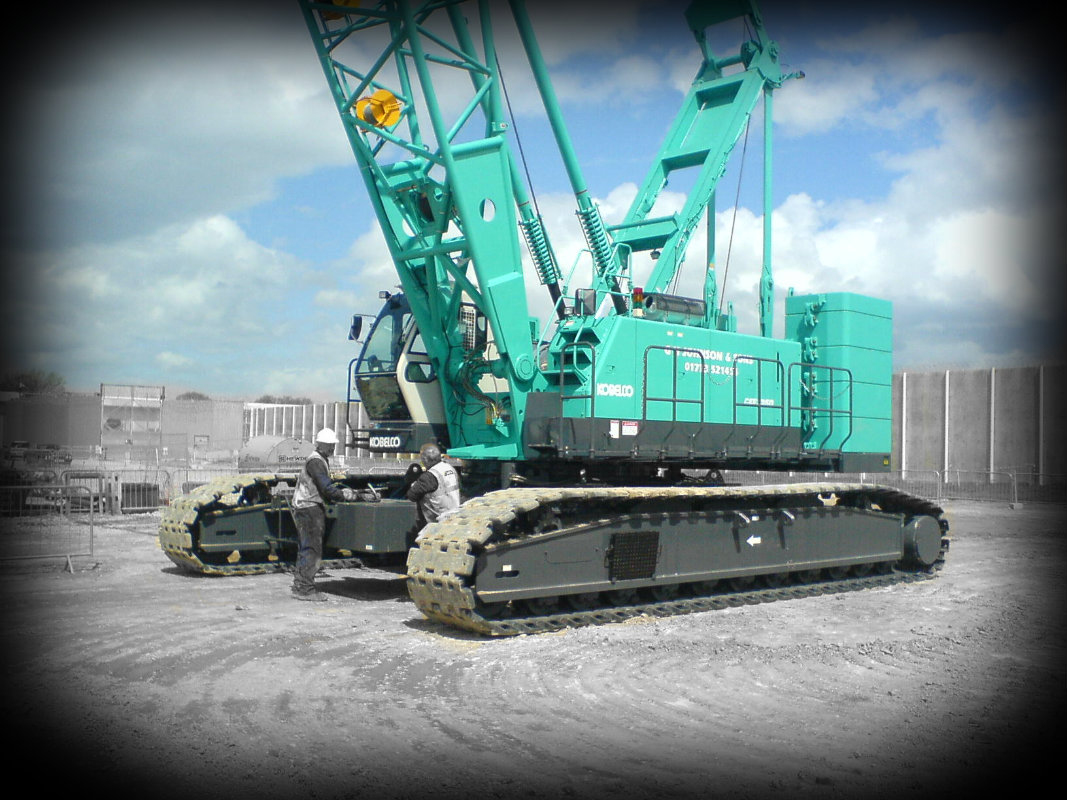

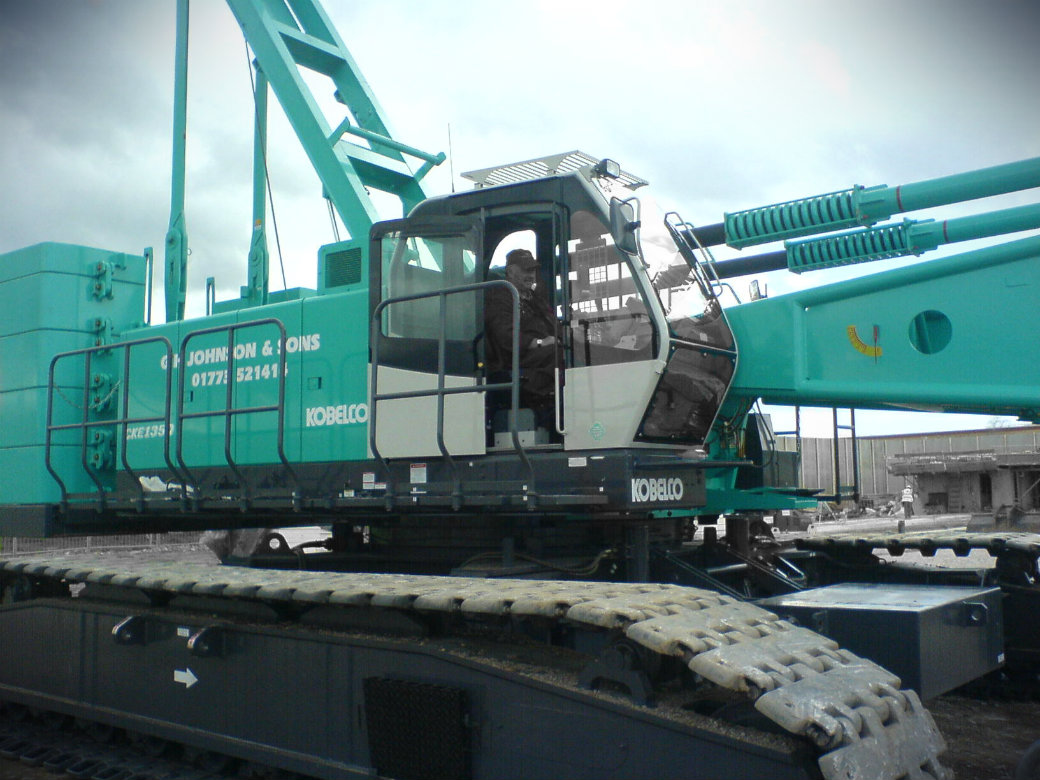

Kobelco CKE1350-1F
135 Tonne Capacity Crawler Crane available for hire — 15.2m (50ft) to 61.0m (200ft) Main Boom, Auxiliary Sheave (for 13.5t capaciy or 27t capacity whipline) or 12.2m (40ft) to 30.5m (100ft) Fly Jib.
The KOBELCO CKE1350-1F crawler crane is designed to surpass the latest job trends in the construction environment. With its excellent operability, sensitive controls and, most important, its safety features the CKE1350 achieves a perfect balance in its overall performance. Whether positioning bridge girders or constructing tall buildings, smooth and speedy operation is the most important performance — in regular crane or fly jib operations for building construction, as well as general foundation work, there's more than enough capacity.
The difference is in its basic performance — the CKE1350-1F from KOBELCO.
- Powerful & Versatile Performance for Diverse Applications;
- Smooth Operation & Control;
- Excellent Cab with Enhanced Functions;
- Excellent Transportability and Assembly;
- Safe, Environmentally Conscious Design.
The engine has an impressive rated output of 247kW (335HP) and complies with NRMM Euro Stage IIIA exhaust emissions regulations. All of this power works with Kobelco’s unique Engine Speed Sensing (ESS) control system and new hydraulic systems to ensure stable and smooth simultaneous operations.
View the full CKE1350-1F Specification Sheet or contact us for a no-obligation chat about your requirements.
Kobelco CKE1350G
Early in 2013, G.H. Johnson Crane Hire Ltd. will further extend our association with KOBELCO Crawler Cranes with the acquisition of two of their latest G-Series crawler cranes — fitted with a new, low-emission, Euro Stage IIIB compliant engine producing an impressive 271kW (363HP).
With the introduction of the G-Series range of crawler cranes, Kobelco are the first manufacturer to combine Exhaust Gas Recirculation (EGR) for reduced NOx emissions with an active Diesel Particualte Filter (DPF) to virtually eliminate the Particulate Matter (PMx) commonly associated with diesel engines. The Kobelco CKE1350G is the first construction machine of its kind to meet, and even surpass, the world's most stringent emissions regulations — perfect for inner-city projects like CrossRail and construction sites in sensitive areas.
Kobelco's ground-breaking G-Mode energy-saving system combines three operator-selectable assist modes to reduce fuel consumption & corresponding CO2 emissions by as much as 25%.
- G-Engine keeps the engine running within the most fuel-efficient parameters by limiting engine speed;
- G-Winch allows the operator to raise or lower small loads at high line-speed without increasing engine speed;
- Auto-Idle Stop (AIS) conserves fuel by automatically stopping the engine (with an operator prompt) after 10 seconds of idling. Similar to the fuel-saving systems fitted some of the latest, most economical, cars the AIS system restarts the engine on demand once the operator is ready.
Other re-designed features of the new G-Series machines include a compact super-structure allowing for more efficient transportion; larger cab design with improved visibility; touchscreen LMI & Controller and improved counterweight self-installation mechanism. Kobelco Cranes is renowned for smart engineering and an unwavering focus on creating the best value package for lifting solutions — all designed to give users a competitive edge and provide top performance.
View the full CKE1350G Specification Sheet or contact us for a no-obligation chat about your requirements.
